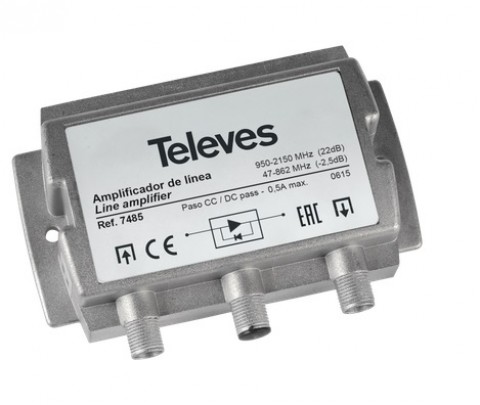

Televes 7485 Line Amplifier 2150Mhz
Fogyasztói ár: 6,350 Ft
Nettó ár: 5,000 Ft
Nettó ár: 5,000 Ft
Mennyiség:
- VAGY -
Kívángságlistába
Összehasonlítás
Összehasonlítás
Televes 7485 Line Amplifier 2150Mhz
Highlights
- Satellite gain: 22 dB, with a high output level
- Low through losses for terrestrial: -2.5 dB
- High-shielding Zamak chassis
- Low noise figure
- DC circulation between output and input
Main features
- F connectors
- Indoor or outdoor installation (with ref. 4163 housing)
- DC circulation between output and input
| Number of inputs | 1 | ||||
|---|---|---|---|---|---|
| Number of outputs | 1 | ||||
| Bands |
|
||||
| Frequency range | MHz |
|
|||
| Gain | dB |
|
|||
| Through losses | dB |
|
|||
| Output level DIN VDE0855/12 | dBμV |
|
|||
| Noise figure | dB |
|
|||
| Powering | Vdc | 12 ... 18 | |||
| Current consumption | mA | 60 | |||
| DC pass | SAT→In | ||||
| Max. current pass | mA | 500 |
