Triax ACV 8 - 8-as elosztó
Fogyasztói ár: 5,546 Ft
Nettó ár: 4,367 Ft
Nettó ár: 4,367 Ft
Mennyiség:
- VAGY -
Kívángságlistába
Összehasonlítás
Összehasonlítás

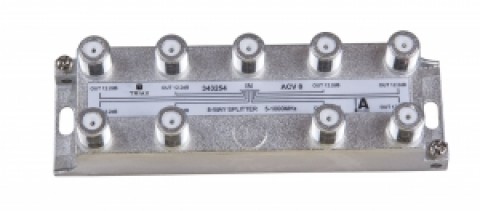

Triax ACV 8 - 8-as elosztó
TRIAX splitter all round performance for use in CATV, SMATV & MATV
- Frequency range 5-1000 MHz
- High shielding
- Return loss Grade 2
- High quality die cast housing Sn coated
- All ports AC/DC blocked at inner conductor
- Acc. to EN 50083-2 & EN 60728-4
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663432543 |
| SHIELDING | |
| Shielding effeciency VHF/UHF | > 110 dB |
| CHARACTERISTICS | |
| Type | COAX splitter |
| FREQUENCY | |
| Frequency range | 5...1000 MHz |
| LOSS | |
| Tap loss (in-tap) 5-40 MHz | 10.2 dB |
| Tap loss (in-tap) 40-470 MHz | 10.7 dB |
| Tap loss (in-tap) 470-860 MHz | 11.8 dB |
| Tap loss (in-tap) 860-1000 MHz | 12.2 dB |
| ISOLATION | |
| Isolation (tap-tap) 5-40 MHz | 27 dB |
| Isolation (tap-tap) 40-470 MHz | 28 dB |
| Isolation (tap-tap) 470-860 MHz | 27 dB |
| Isolation (tap-tap) 860-1000 MHz | 24 dB |
| RETURN LOSS | |
| Return loss (in-out) 5-40 MHz | 20 dB |
| Return loss (in-out) 40-470 MHz | 22 dB |
| Return loss (in-out) 470-860 MHz | 20 dB |
| Return loss (in-out) 860-1000 MHz | 20 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Application | MATV, SMATV 1Ghz |
| Screening Efficiency | EN50083-2 (Class A) |
| DC Passthrough | NO - DC blocked at inner conductor |
| Certification | IEC 60 728-2, IEC 60 728-4, IEC 60 728-11 |
| Environment | Indoor |
| CONNECTORS | |
| Number of outputs | 8 |
| Connector Type | F-female |
