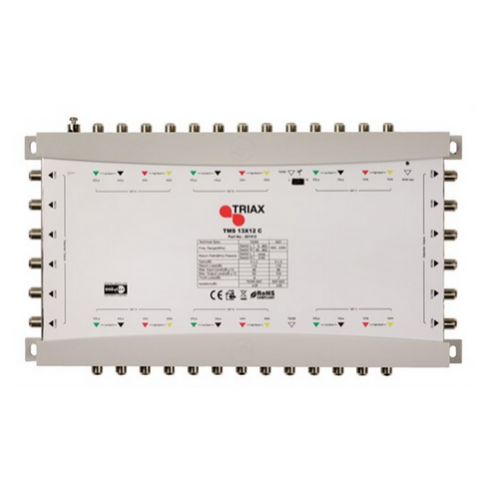

Triax TMS 13x12 C multikapcsoló

Triax TMS 13x12 C multikapcsoló
Gyártó: Triax
Kategória:  Triax Multiswitch
Cikkszám: 318802
Megnézték: 38
Garancia : 1 év
Készlet információ: 6 nap
Fogyasztói ár: 68,190 Ft
Nettó ár: 53,693 Ft

Mennyiség:


Termék leírás:

Easy to install multiswitch system for use where 3 satellite positions are required. A terrestrial input is available to allow terrestrial as well as satellite signals to be available on all subscribers outputs. TMS 13x has an active satellite signal path and a passive terrestrial signal path allowing a terrestrial return path if needed.

Technical Specifications ▼
Item ID

EAN Number
5702663074125
Frequency range

Frequency range SAT
950-2150 MHz
Gain

Gain - TER [47-862 MHz]
- 2.0 ... + 4.0 dB
Physical

Height (mm)
53 mm
Depth (mm)
202 mm
Width (mm)
334 mm
Loss

Insertion loss - trunkline TER
6.0 (± 1.0) dB
Insertion loss - trunkline SAT
7.0 (± 2.0) dB
Return loss

Return loss
> 10.0 (alle Ports) dB
Connectors

Number of inputs
12 SAT, 1 TER
Number of outputs
12 SAT, 1 TER pcs.
Subscriber outputs
12 pcs.
Colourcoding of IF and TER inputs
Yes
Outputs

Output level SAT @ -35 dB IMD3
95 dBµV
Output level TER @ 60dB IMD3
85 dBµV
Isolation

Isolation cross polarisation H/V
> 28.0 dB
Isolation out-out SAT
> 30.0 dB
Electrical data

Power supply voltage
18.0 (± 0.5) V
Power supply
External
Power supply current
1600 mA
Temperature and humidity

Temperature range
-20...+55 °C
Other

Impedance input/output
75 Ω
