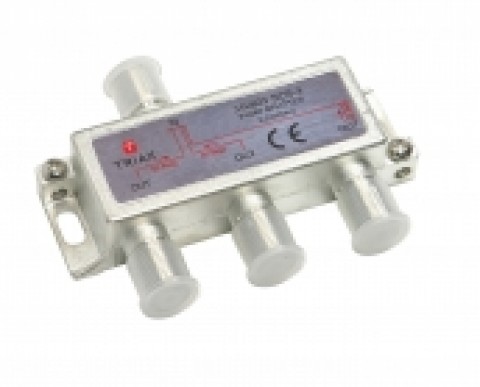

Triax SCS-3 3-as sat elosztó

Triax SCS-3 3-as sat elosztó

TRIAX splitter ideal for SAT-IF and MATV distribution networks.

• Frequency range 5-2400 MHz
• DC pass through over diodes from all outputs
• High shielding
• Return loss Grade 3
• High quality die cast housing tin (Sn) coated

• ORDER INFORMATION
  EAN Number	5702663498037
  SHIELDING
  Shielding effeciency VHF/UHF	> 110 dB
  CHARACTERISTICS
  Type	COAX splitter
  FREQUENCY
  Frequency range	5...2400 MHz
  LOSS
  Insertion loss (in-out) 2150-2400 Mhz	10.5 dB
  Insertion loss (in-out) 40-1000 Mhz	7.5 dB
  Insertion loss (in-out) 5-40 Mhz	6.5 dB
  Insertion loss (in-out) 1000-2150 MHz	10.0 dB
  ISOLATION
  Isolation (tap-tap) 1000-2150 MHz	23 dB
  Isolation (tap-tap) 2150-2400 MHz	23 dB
  Isolation (tap-tap) 40-1000 MHz	22 dB
  Isolation (tap-tap) 5-40 MHz	23 dB
  RETURN LOSS
  Return loss (in-out) 1000-2150 MHz	13.0 dB
  Return loss (in-out) 2150-2400 MHz	13.0 dB
  Return loss (in-out) 40-1000 MHz	12.0 dB
  Return loss (in-out) 5-40 MHz	10.0 dB
  ELECTRICAL
  Impedance	75 Ω
  OPERATIONAL
  DC Passthrough	Yes (max. 500mA)
  Screening Efficiency	EN50083-2 (Class A)
  Application	SAT, MATV 2.4Ghz +DC
  Environment	Indoor
  CONNECTORS
  Connector Type	F-female
  Number of outputs	3
  Number of inputs	1
