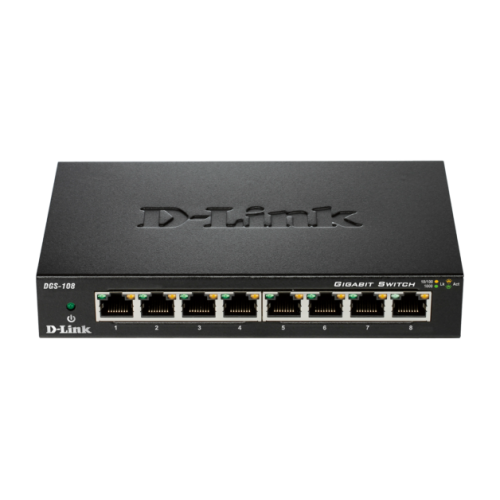

D-link DGS-108 8-port 10/100/1000 fém házas Switch

Gyártó: D-Link
Kategória: D-Link Switch
Cikkszám: D-LINK DGS108
Megnézték: 1651
Garancia : 1 év
Készlet információ: 2 Nap

Fogyasztói ár: 13,335 Ft
Nettó ár: 10,500 Ft

Mennyiség:

Leírás

Termék jellemzők:

D-link DGS-108 8-port 10/100/1000 fém házas Switch

Key Features

Built-in D-Link Green Technology

Inexpensive Gigabit solution for Home/SOHO

Eight 10/100/1000 Mbps Gigabit ports

16 Gbps switching fabric

Auto MDI/MDIX crossover for all ports

Secure store-and-forward switching scheme

Full/half-duplex for Ethernet/Fast Ethernet speeds

IEEE 802.3x Flow Control

Supports 9,000 Byte Jumbo Frames

Supports IEEE 802.1p QoS (4 Queues, Strict Mode)

Supports Cable Diagnostics Function

RoHS compliant

Plug-and-play installation

Standards

IEEE 802.3 10BASE-T Ethernet (twistedpair copper)

IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)

ANSI/IEEE 802.3 NWay auto-negotiation

IEEE 802.3x Flow Control

IEEE 802.1p QoS

IEEE 802.3az Energy-Efficient Ethernet (EEE)

Protocol

CSMA/CD

Data Transfer Rates

Ethernet:

10 Mbps (half duplex)

20 Mbps (full duplex)

Fast Ethernet:

100 Mbps (half duplex)

200 Mbps (full duplex)

Gigabit Ethernet:

2000 Mbps (full duplex)

Topology

Star

Network Cables

10BASE-T:

UTP CAT 3, 4, 5/5e (100 m max.)

EIA/TIA-586 100-ohm STP (100 m max.)

100BASE-TX, 1000BASE-T:

UTP CAT 5/5e (100 m max.)

EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

Auto MDI/MDIX adjustment for all ports

LED Indicators

Per port: Link/Activity/Speed

Per device: Power

Transmission Method

Store-and-forward

MAC Address Table

8K

MAC Address Learning

Automatic update

Packet Filtering/Forwarding Rates

Ethernet: 14,880 pps per port

Fast Ethernet: 148,800 pps per port

Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

128 KB per device

DC Input

External 5 V/1 A Level “V” Power Adapter

Power Consumption

Power On (Standby):

DC input: 0.55 watts

AC input: 1.0 watts

Maximum:

DC input: 2.8 watts

AC input: 4.5 watts

Heat Dissipation

Power On (Standby)

AC input: 3.41 BTU/h

Maximum

DC input: 9.548 BTU/h

MTBF

2,053,751 hours

Operating Temperature

0 to 50 ˚C (32 to 130 ˚F)

Storage Temperature

-10 to 70 ˚C (14 to 158 ˚F)

Operating Humidity

10% to 90% RH non-condensing

Storage Humidity

5% to 90% RH non-condensing

Device Dimensions (W x D x H)

162 x 102 x 28 mm (6.3 x 4 x 1.1 inches)

Certifications

FCC Class B

ICES-003 Class B

CE Class B

C-Tick Class B

VCCI Class B

cUL

CB

Leírás

Termék jellemzők:

D-link DGS-108 8-port 10/100/1000 fém házas Switch

Key Features

Built-in D-Link Green Technology

Inexpensive Gigabit solution for Home/SOHO

Eight 10/100/1000 Mbps Gigabit ports

16 Gbps switching fabric

Auto MDI/MDIX crossover for all ports

Secure store-and-forward switching scheme

Full/half-duplex for Ethernet/Fast Ethernet speeds

IEEE 802.3x Flow Control

Supports 9,000 Byte Jumbo Frames

Supports IEEE 802.1p QoS (4 Queues, Strict Mode)

Supports Cable Diagnostics Function

RoHS compliant

Plug-and-play installation

Standards

IEEE 802.3 10BASE-T Ethernet (twistedpair copper)

IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)

ANSI/IEEE 802.3 NWay auto-negotiation

IEEE 802.3x Flow Control

IEEE 802.1p QoS

IEEE 802.3az Energy-Efficient Ethernet (EEE)

Protocol

CSMA/CD

Data Transfer Rates

Ethernet:

10 Mbps (half duplex)

20 Mbps (full duplex)

Fast Ethernet:

100 Mbps (half duplex)

200 Mbps (full duplex)

Gigabit Ethernet:

2000 Mbps (full duplex)

Topology

Star

Network Cables

10BASE-T:

UTP CAT 3, 4, 5/5e (100 m max.)

EIA/TIA-586 100-ohm STP (100 m max.)

100BASE-TX, 1000BASE-T:

UTP CAT 5/5e (100 m max.)

EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

Auto MDI/MDIX adjustment for all ports

LED Indicators

Per port: Link/Activity/Speed

Per device: Power

Transmission Method

Store-and-forward

MAC Address Table

8K

MAC Address Learning

Automatic update

Packet Filtering/Forwarding Rates

Ethernet: 14,880 pps per port

Fast Ethernet: 148,800 pps per port

Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

128 KB per device

DC Input

External 5 V/1 A Level “V” Power Adapter

Power Consumption

Power On (Standby):

DC input: 0.55 watts

AC input: 1.0 watts

Maximum:

DC input: 2.8 watts

AC input: 4.5 watts

Heat Dissipation

Power On (Standby)

AC input: 3.41 BTU/h

Maximum

DC input: 9.548 BTU/h

MTBF

2,053,751 hours

Operating Temperature

0 to 50 ˚C (32 to 130 ˚F)

Storage Temperature

-10 to 70 ˚C (14 to 158 ˚F)

Operating Humidity

10% to 90% RH non-condensing

Storage Humidity

5% to 90% RH non-condensing

Device Dimensions (W x D x H)

162 x 102 x 28 mm (6.3 x 4 x 1.1 inches)

Certifications

FCC Class B

ICES-003 Class B

CE Class B

C-Tick Class B

VCCI Class B

cUL

CB
