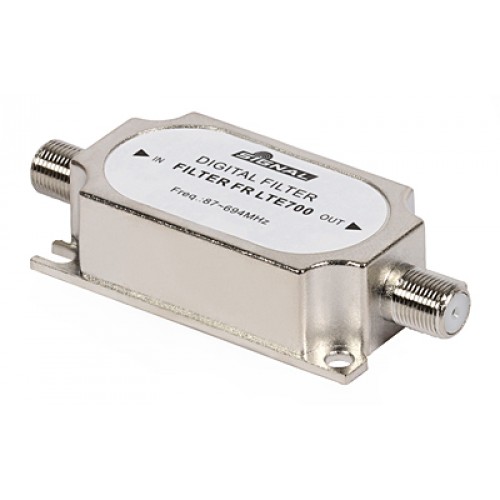

| Product | LTE700 Signal filter | |
| Code | R49601 | |
| Pass band [MHz] | 87 – 694 | |
| Stop band [MHz] | 695-1000 | |
| Attenuation [dB] | 87...686 [MHz] | < 4 |
| 686...694 [MHz] | < 6 | |
| 703...738 [MHz] | > 12 | |
| 738...960 [MHz] | > 27 | |
| Return loss [dB] | < 10 | |
| DC pass-through | none | |
| Operating ambient temperature range [°C] | -20...+50 | |
| Dimensions [mm]/weight [kg] | 81x33x17/0.1 | |
| Product | LTE700 Signal filter | |
| Code | R49601 | |
| Pass band [MHz] | 87 – 694 | |
| Stop band [MHz] | 695-1000 | |
| Attenuation [dB] | 87...686 [MHz] | < 4 |
| 686...694 [MHz] | < 6 | |
| 703...738 [MHz] | > 12 | |
| 738...960 [MHz] | > 27 | |
| Return loss [dB] | < 10 | |
| DC pass-through | none | |
| Operating ambient temperature range [°C] | -20...+50 | |
| Dimensions [mm]/weight [kg] | 81x33x17/0.1 | |
