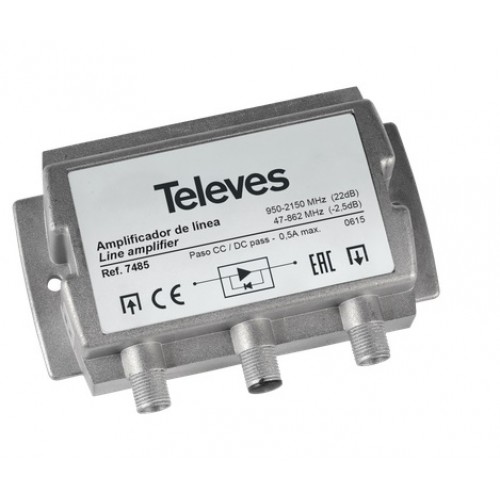

Televes 7485 Line Amplifier 2150Mhz
Highlights
- Satellite gain: 22 dB, with a high output level
- Low through losses for terrestrial: -2.5 dB
- High-shielding Zamak chassis
- Low noise figure
- DC circulation between output and input
Main features
- F connectors
- Indoor or outdoor installation (with ref. 4163 housing)
- DC circulation between output and input
| Number of inputs |
|
1 |
| Number of outputs |
|
1 |
| Bands |
|
|
| Frequency range |
MHz |
| 47 ... 230 |
470 ... 862 |
950 ... 2150 |
|
| Gain |
dB |
|
| Through losses |
dB |
|
| Output level DIN VDE0855/12 |
dBμV |
|
| Noise figure |
dB |
|
| Powering |
Vdc |
12 ... 18 |
| Current consumption |
mA |
60 |
| DC pass |
|
SAT→In |
| Max. current pass |
mA |
500 |
