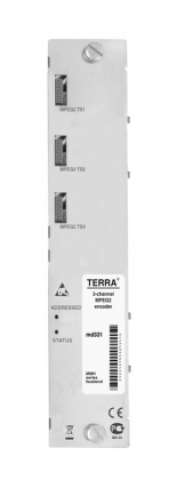

Terra MD331 3-channel MPEG2 encoder
MMH3000 mini moduláris fejállomáshoz
Converting analogue video/audio signals into MPEG2 coded transport stream.
- three composite video and three stereo audio inputs
- three individual MPEG2 TS outputs
- MPEG2 TS PID control
- video brightness, contrast, saturation, hue control
- programmable audio and video compression bit rates
- programmable audio sampling rate
- audio level control
- parameters control via CMH data bus extension port
- firmware upgradeable
- connectors: 3-channel video/audio input – 15-pin Sub-D socket on the bottom side three MPEG2 TS outputs: TS1, TS2 and TS3 on the front panel
|
Technikai specifikáció |
||
| Sections | 3 | |
| Video | encoding | ISO/IEC13818-2 MPEG-2 MP@ML |
| resolution | 720 x 576 (at 25 fps), 720 x 480 (at 30 fps) | |
| frame rate | 25 max. PAL, 30 max. NTSC | |
| Audio | encoding | ISO /IEC11172-3 (MPEG1 audio) layer 1/2 compliant |
| sampling rate | 64 to 384 Kbps per channel | |
| compressed bit rate | Stereo, Joint Stereo, Dual Channel, Mono | |
| audio mode | ISO/IEC13818-1 MPEG2 TS | |
| Audio/Video multiplexing | ISO/IEC13818-1 MPEG2 TS | |
| Compressed system bit rate | 1 to 15 Mbps per channel | |
| Compressed system bit rate mode | constant, variable | |
| Video standard | AUTO, PAL (I, B, G, H, D, N), SECAM, NTSC | |
| Current consumption | 5.5 V 1.5 A max. | |
| Operating temperature range | 0 o ÷ +50 o C | |
| Dimensions/Weight (packed) | 47.5x117x220.5 mm/0.9 kg | |
